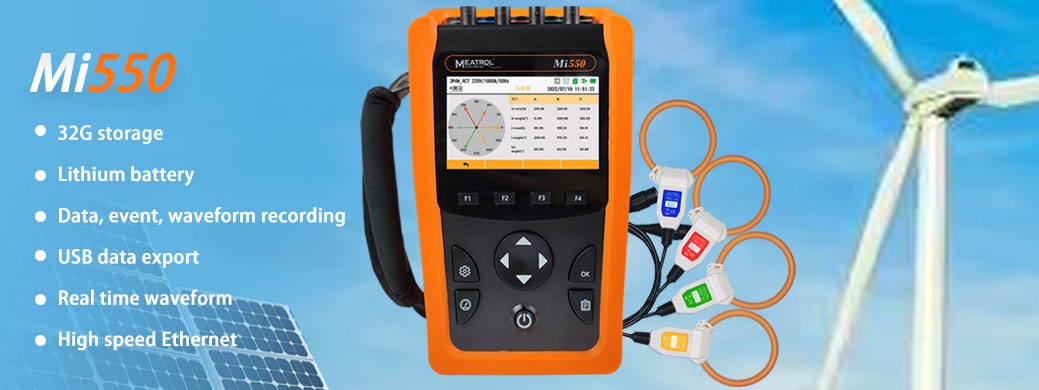

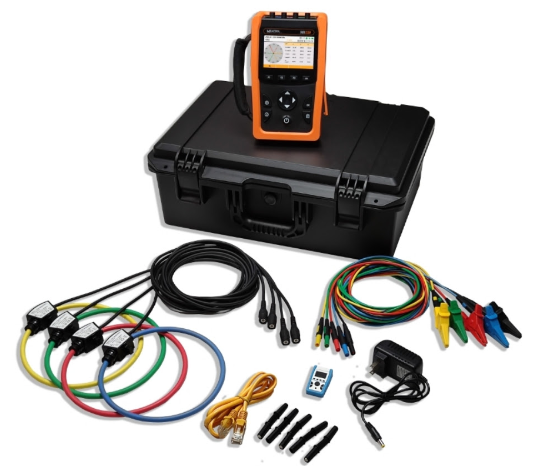

Mi550 Power Logging Meter
Introducing the MI550 Waveforms Power Analyzer, an advanced Handheld Power Quality Analysis.
The MI550 is the latest in the line of power loggers. This versatile handheld analyser is engineered for comprehensive power quality analysis and electrical parameter measurement in both single-phase and three-phase systems. It is ideal for professionals who need accurate, detailed power system insights with the flexibility and convenience of a handheld tool.
Applications:
• Built for Engineering and Field Use and Designed for:
• Electrical inspections
• System commissioning
• Ongoing maintenance
Benefit: A rugged, all-in-one tool that’s ready for professional use in real-world conditions.
Key Features and Benefits:
Comprehensive Measurement Capabilities
The MI550 provides real-time measurement of a wide range of critical electrical parameters:
• Current, Voltage, Frequency
• Power Factor and Fundamental Harmonic Power Factor
• Active, Reactive, and Apparent Power
• Active Energy (Import/Export), Reactive Energy (Import/Export), Apparent Energy
Benefit: Delivers a full picture of power usage and quality, essential for system optimization, troubleshooting, and energy efficiency audits.
Advanced Power Quality Monitoring
• Includes analysis of:
Harmonics: Voltage and current (total, odd, and even THD)
Unbalance: Voltage and current (negative and zero sequence)
Voltage Swells and Dips
• Peak and Crest Factors: For both voltage and current
Current K Factor: For assessing harmonic heating effects
Phase Angle Measurements: Between voltage, current, and between each other
Benefit: Enables detailed power quality diagnostics, helping prevent equipment damage, inefficiencies, or compliance issues.
High-Capacity Data Recording & Storage
• Waveform Recording for in-depth analysis
• Programmable Interval Logging for scheduled monitoring
• 32 GB Internal Memory for extensive data storage
Benefit: Captures long-term trends and transient events with high resolution – ideal for site assessments and reporting.
Real-Time Communication
• Equipped with an RJ45 Ethernet interface
• Supports Modbus TCP protocol for integration with configuration systems or data centers
Benefit: Allows live data transmission and remote monitoring, streamlining system diagnostics and maintenance.
Peak and Demand Measurements
Tracks:
• Peak Values for voltage, current, and power
• Demand Metrics (Current, Active, Reactive, Apparent Power)
Benefit: Helps manage load demands, reduce peak charges, and improve system planning.
Supports Multiple System Types
• Fully compatible with single-phase and three-phase systems
• Adaptable to various power distribution configurations
Benefit: Suitable for a wide range of applications, from industrial plants to commercial facilities and utility networks.
Data Summary of the MI550 Records:
• Voltage & Current (Phase & Line)
• Frequency
• Power (Active, Reactive, Apparent)
• Energy (All types: Import/Export)
• Power Factor (Standard and Fundamental)
• Harmonics (Voltage & Current, THD: total/odd/even)
• Voltage Peaks, Crest & Peak Factors, K Factor
• Unbalance Metrics (Negative/Zero Sequence)
• Angle Measurements (Voltage, Current, Inter-Phases)
• Max/Min values
• Demand & Peak Demand values
